Air bubble film making machine

Short Description:

Main technical parameters of Air cushion bag roll making machine EVS-800:



1.Applicable material PE low pressure material PE high pressure material

2.Unwinding width ≤ 800mm, unwinding diameter ≤ 750mm

3.Bag making speed 135-150 / min

4.160 / min mechanical

5.Bag making width ≤ 800mm bag making length 400mm

6.Discharge gas expansion shaft: 3 inches

7.Automatic rewinding: 2 inches

8.Independent winding: 3 inches

9.Power supply voltage: 22v-380v, 50Hz

10.Total power: 15.5KW

11.Mechanical weight: 3.6T


Product Detail

Product Tags

Machin Introduction

Looking for a reliable and efficient solution to produce high-quality bubble bags for packaging? Our poly film bubble bag processing machine is an excellent choice for businesses that need to meet mass production needs.

Our fully automatic plastic bubble film bag making machine adopts advanced technology, providing stepless speed change and independent pay-off and pick-up motors, which can increase productivity and efficiency. Our machines are equipped with functions such as automatic homing, automatic alarm and automatic stop to ensure smooth and trouble-free operation.

Our air bubble film side seal bag making machine is equipped with fully automatic EPC equipment in the unwinding section, producing uniform film for maximum consistency. The rewinding and unwinding section also includes a high-function potentiometric sensor to ensure continuous unwinding and stable unwinding.

Thanks to its motor reducer brake integrated grating unit, our air bubble film bag making machine provides stability and precision without the need for noisy belt chains. Plus, using Photonics EPC during the unwinding process, we ensure your film is flatter and tighter than ever.

While our machine is not the longest running machine on the market, it is one of the most upgraded models available in China. Many top packaging companies rely on our solutions to support their air column cushioning bag lines. Contact us today to learn more about our bubble machines and how they can help your business.

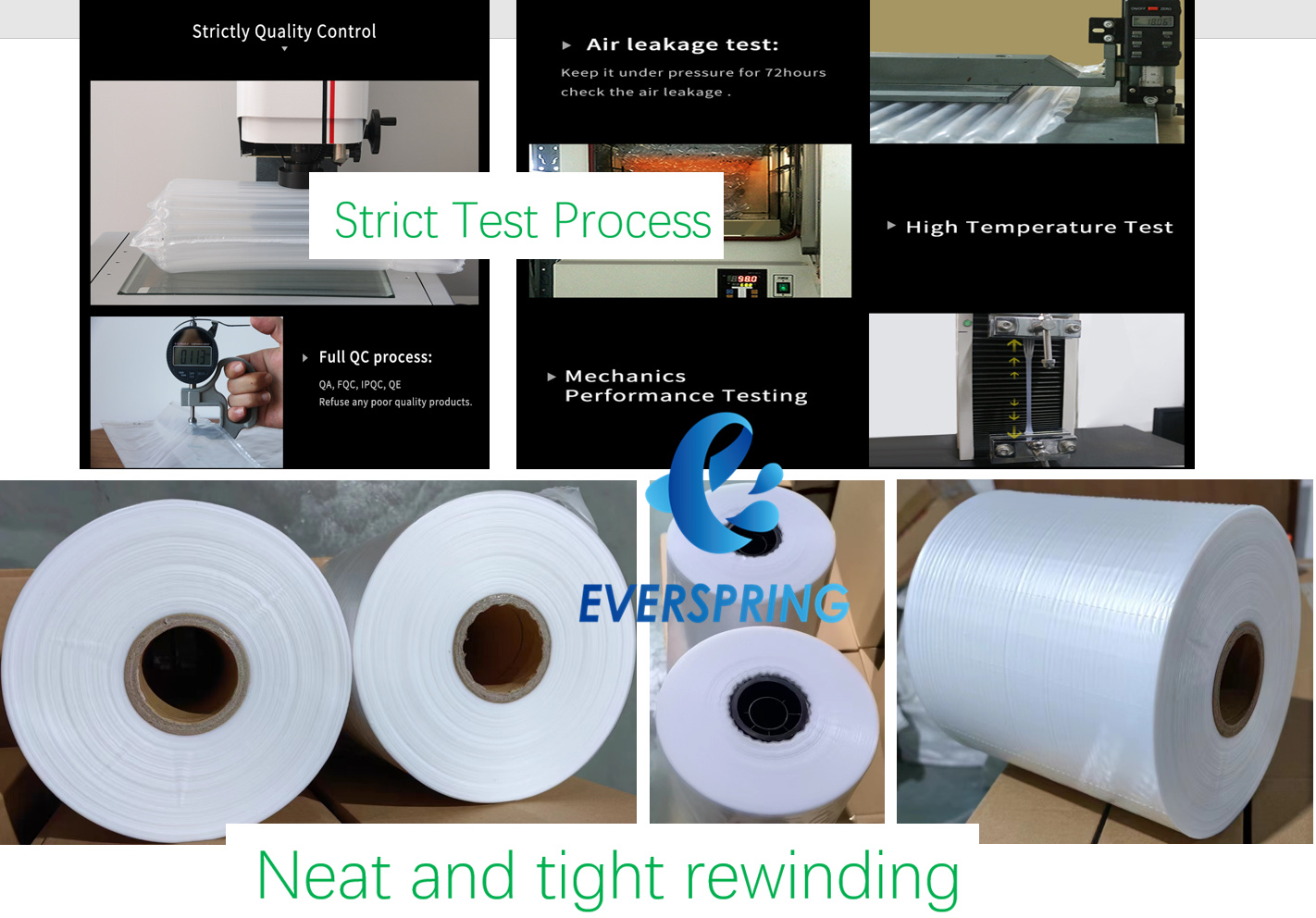

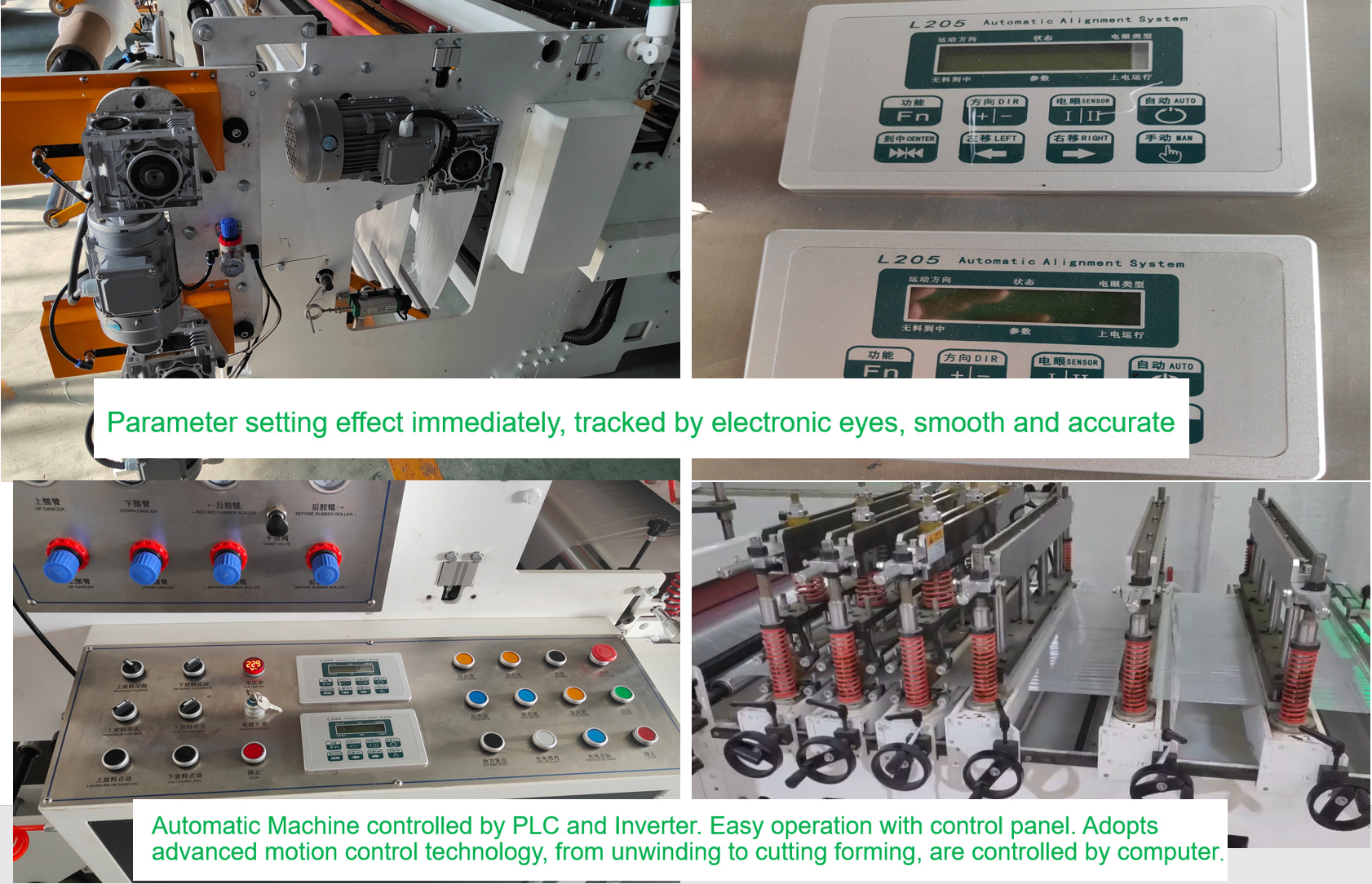

Advantage 1

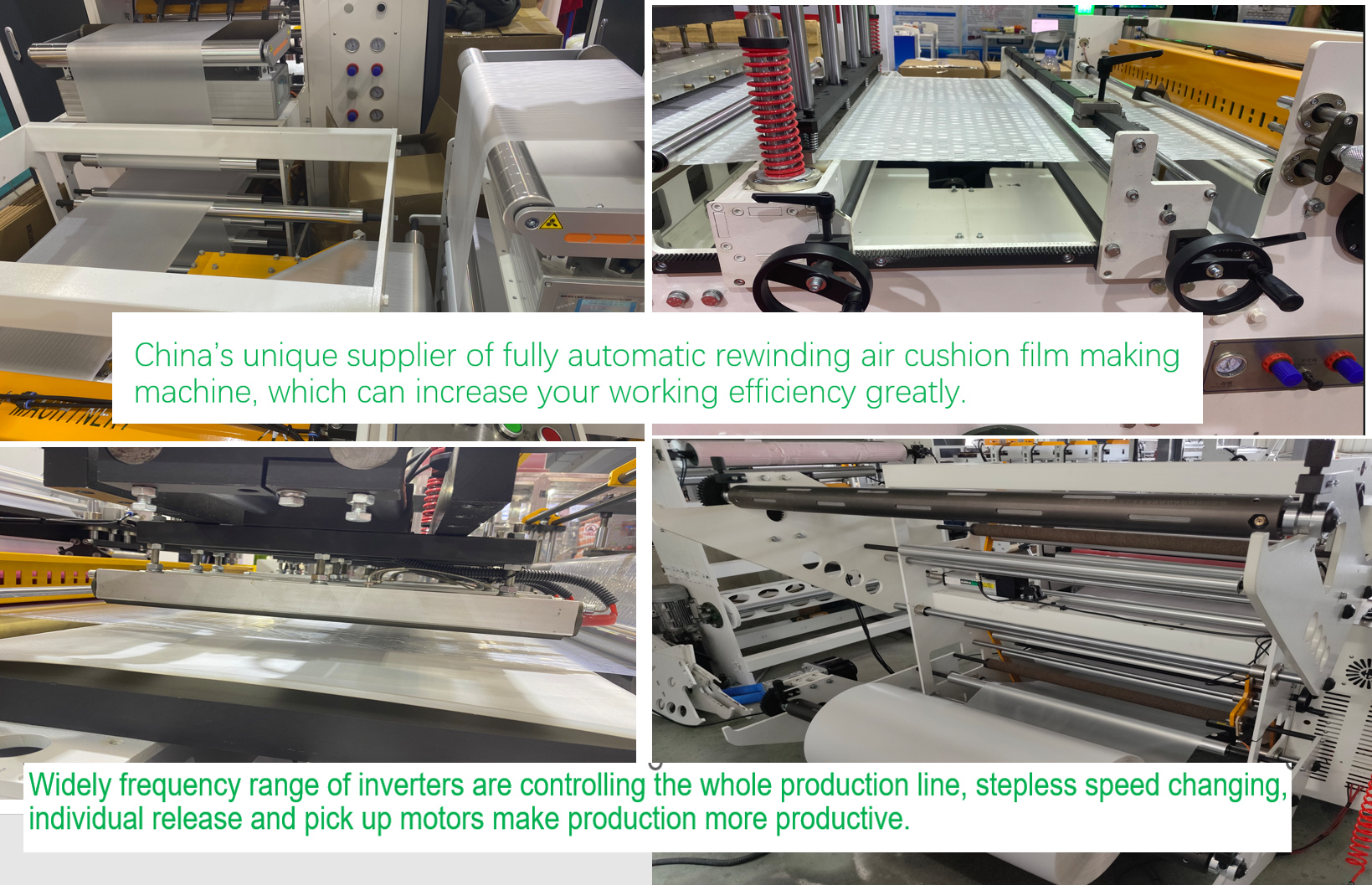

Advantage 2
Advantage 5
Advantage 3
Advantage 4

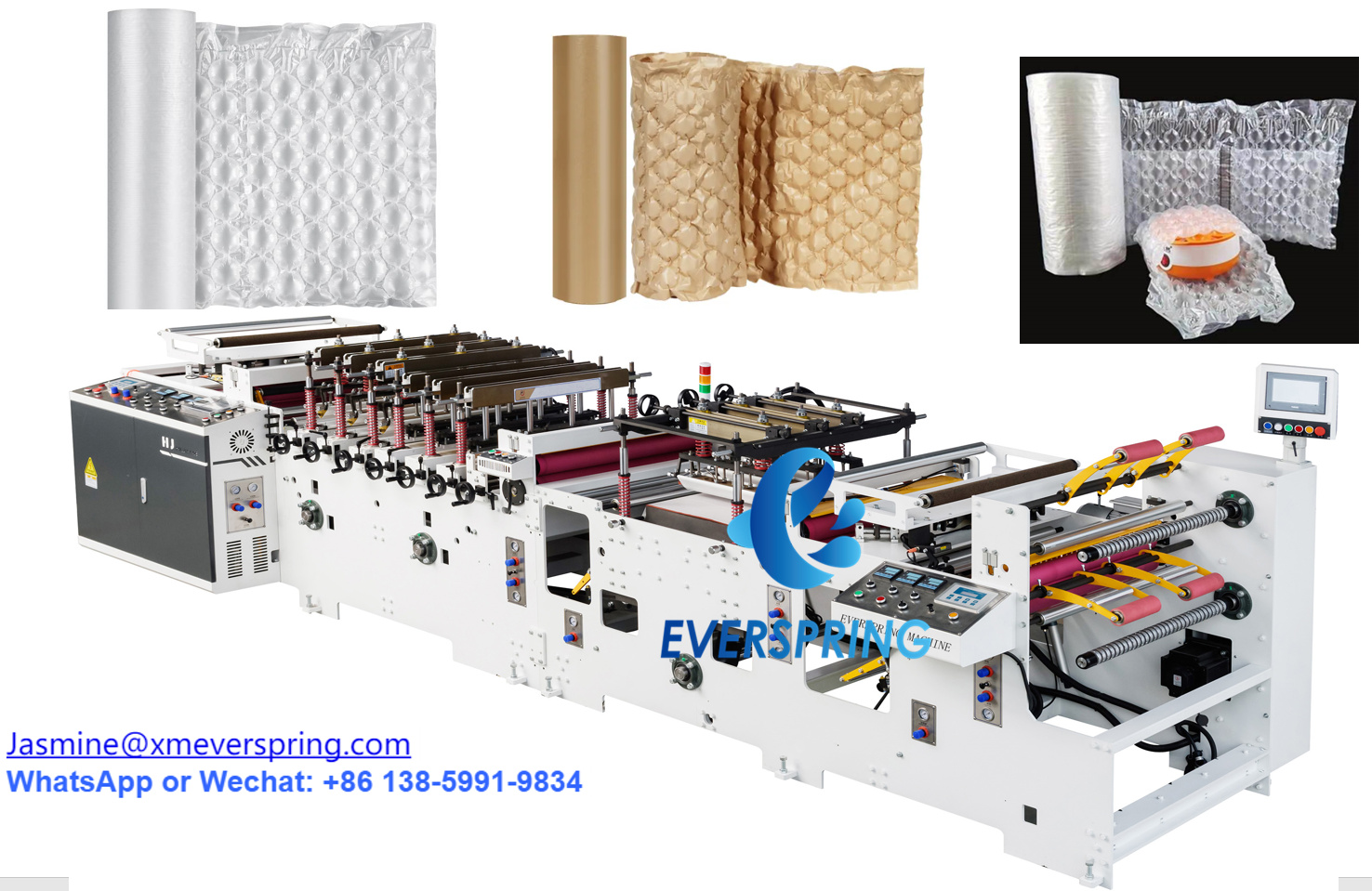

machine

Application& related items

Application
Related items 1
Related items 2

Our Factory

Factory
