Automatic Kraft Paper Paper Rewinder Machine Supplier

Short Description:

Main technical parameters of Automatic Kraft Paper Paper Rewinder Machine Supplier EVR-800:

1. Applicable materials: mainly for the fixed-length rolls of Kraft paper, gift paper, wallpaper, plastic film, non-woven fabrics and other rolls.

2. Cutting type: manual cutting.

3. Max unwinding diameter: Φ1400mm

4. Max unwinding width: 800mm

5. Max rewinding diameter: Φ260mm (winding air shaft.)

6. Max mechanical speed: 20-150 m/min

7. Backup power of the whole machine: 3KW

8. Dimensions: 7500×1500×2000mm


Product Detail

Product Tags

Machine introduction

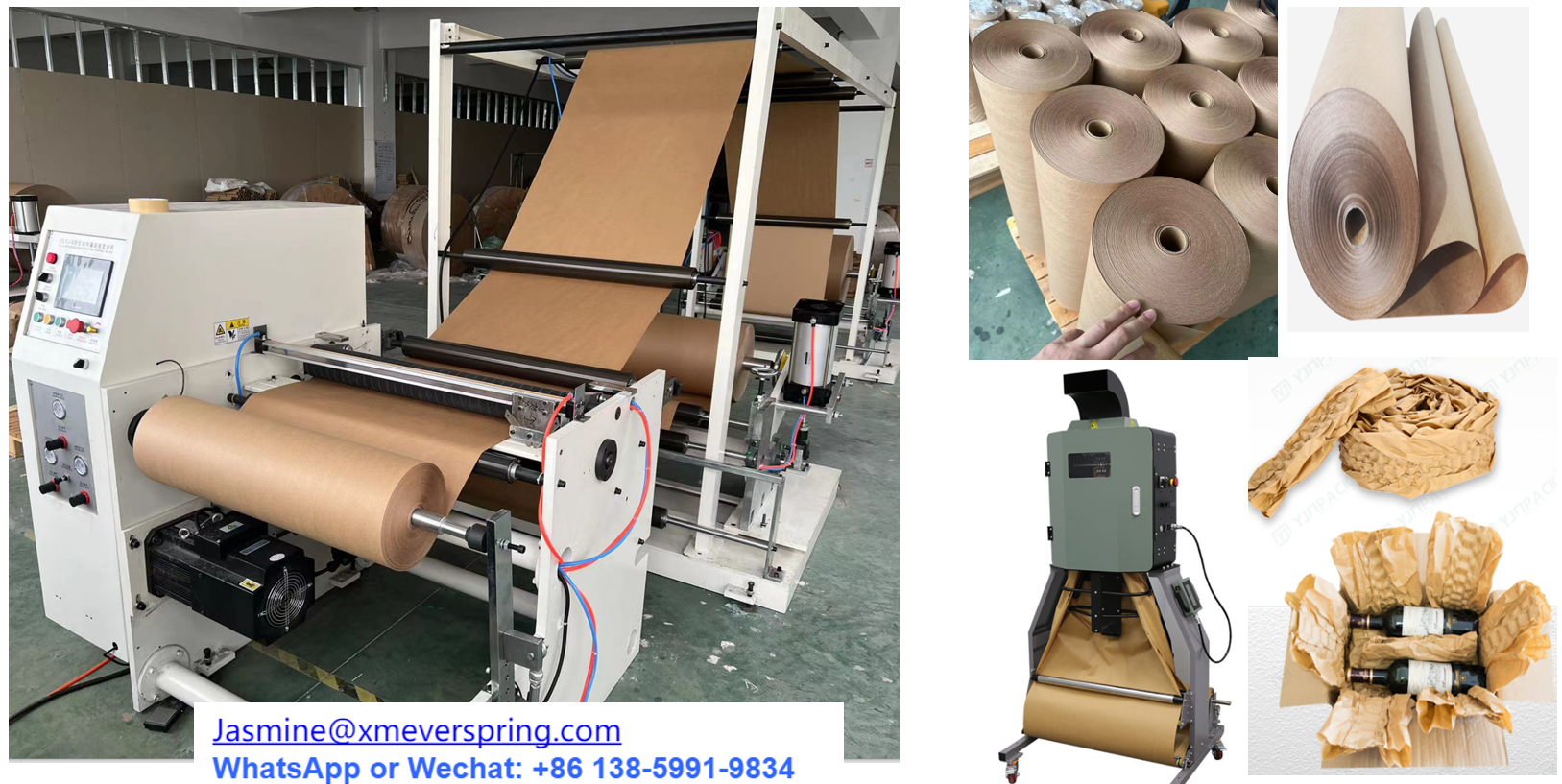

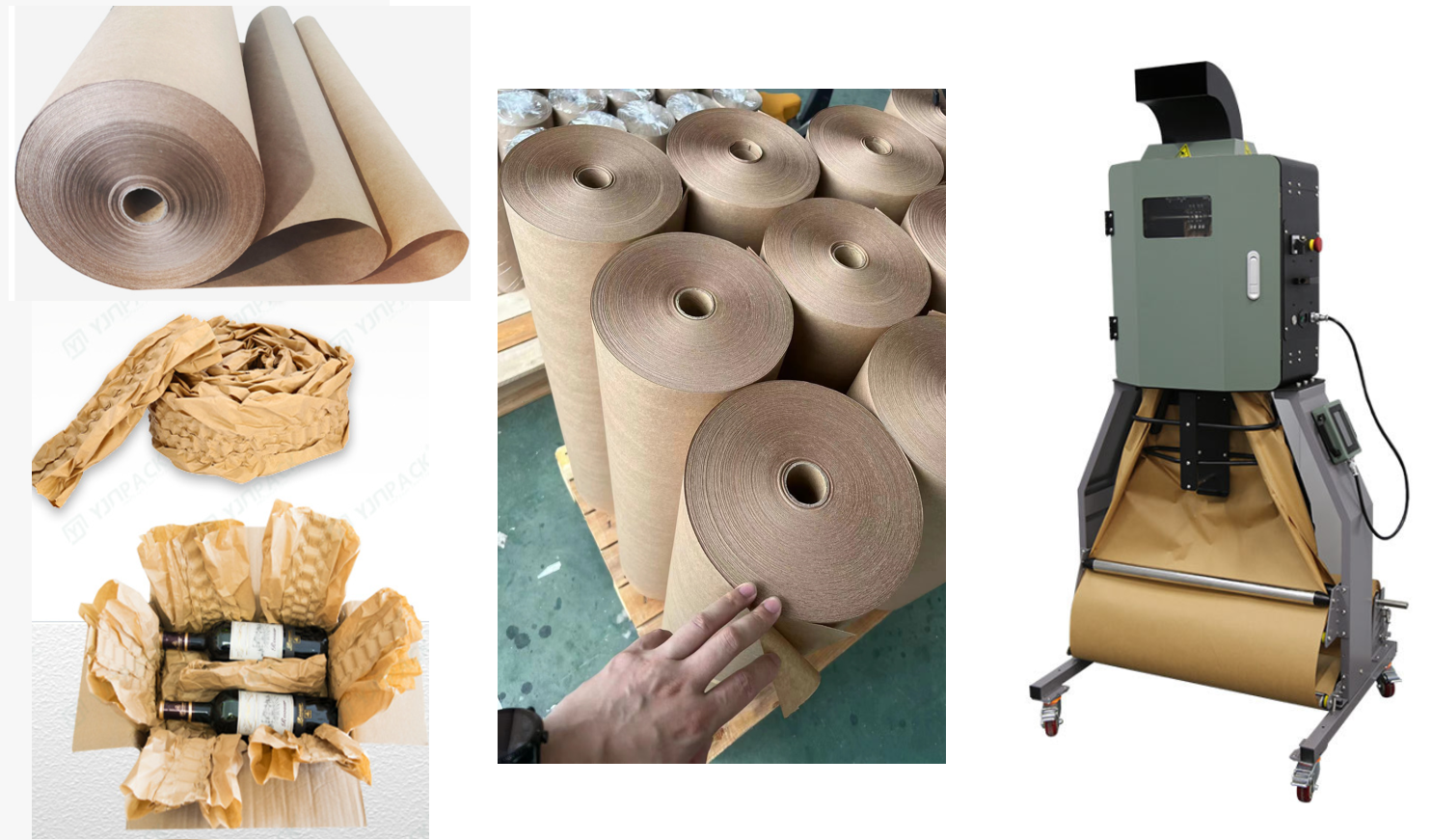

This Double layer kraft paper rewinding machine is used for rewinding jumbo big kraft paper roll into smaller rolls, which can be used by the paper cushion machine like Ranpak, Storopack, Sealedair etc. The paper padded cushioning machine to make the rolls to be paper padded to protect the items during transportation.

This Double layer kraft paper winder machine adopts frequency conversion speed regulation, fully integrated circuit control. Complete functions, good repeatability, stable speed. Reliable work. Absolutely correct movement. Winding and unwinding tension is automatically controlled. Two sections of electronic meter to ensure the accuracy.

details 1
details 2
details 3
details 4
