Corrugated cardboard paper padded machine

Short Description:

The machine adopts microcomputer servo control, fast length adjustment, having the function of automatic counting, photoelectric tracking, false alarm. The host discharging of material is driven by variable frequency motor, changing speed smoothly, high speed downtime, safe and reliable, intelligent control constant temperature, even bottom sealing line, practical and solid, rewinding adopts frequency conversion, photoelectric automatic control ,achieving the effect that unwinding coincides with rewinding.


Product Detail

Product Tags

Summary of Corrugated cardboard paper padded machine

1. This Eco Biodegradable Custom Corrugated Kraft Bubble Envelope Padded Packaging Shipping Honeycomb Paper Mailer Cushion Bag machine is designed for making mailer bags after the kraft paper and the online bubble paper or the honeycomb paper or the corrugated paper are glued together by water and hot heat glue.

2. Bag making method: three rolls of kraft paper are put into the release frame, the middle layer of kraft paper is in the middle of the three release frames for pressing bubble, bubble paper or honeycomb paper or corrugated paper is fixed in the middle layer of two layers of kraft paper by way of fixed point spraying glue, after longitudinal and horizontal pressing, then horizontal secondary spraying glue, folded and sealed by hot pressing and then cut into an environmental protection buffer packaging bag with buffer function for express delivery.

3. The Recyclable Corrugated Paper Shipping Mailer Biodegradable Self Seal Padded Cushioned Mailing Bag making machine adopts advanced motion control technology, from material unwinding to cutting and forming, all controlled by computer, the paper bags produced are flat and environmentally friendly, the sealing is strong and reliable, simple to operate and easy to understand, it is a high-quality special bag-making equipment.

4, Material Shipping Mailers Corrugated Kraft Paper Packaging Bag making machine can also produce: honeycomb mailer bags, Corrugated cardboard mailer bag, Embossed paper bubble mailer bag as below.

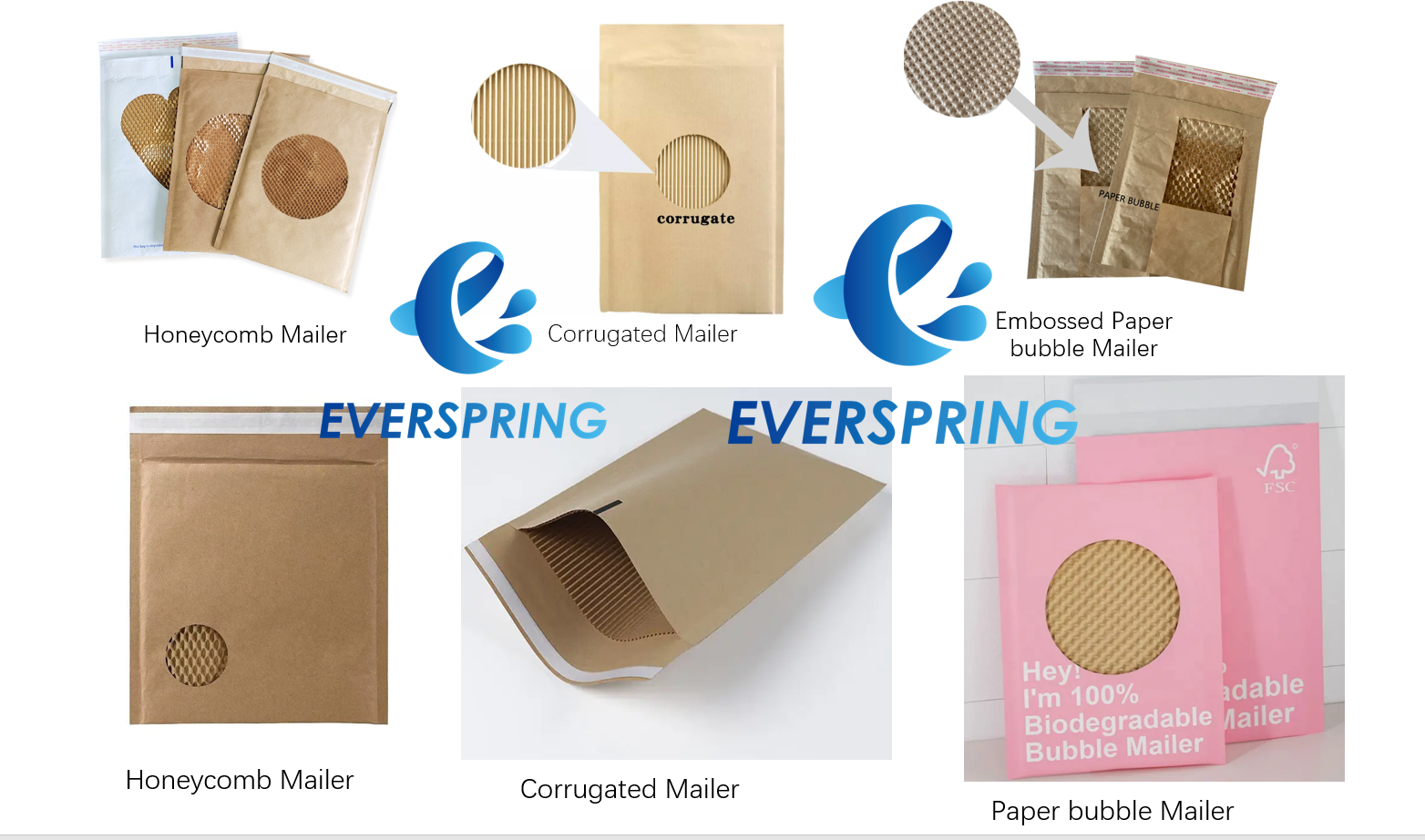

Compostable bags

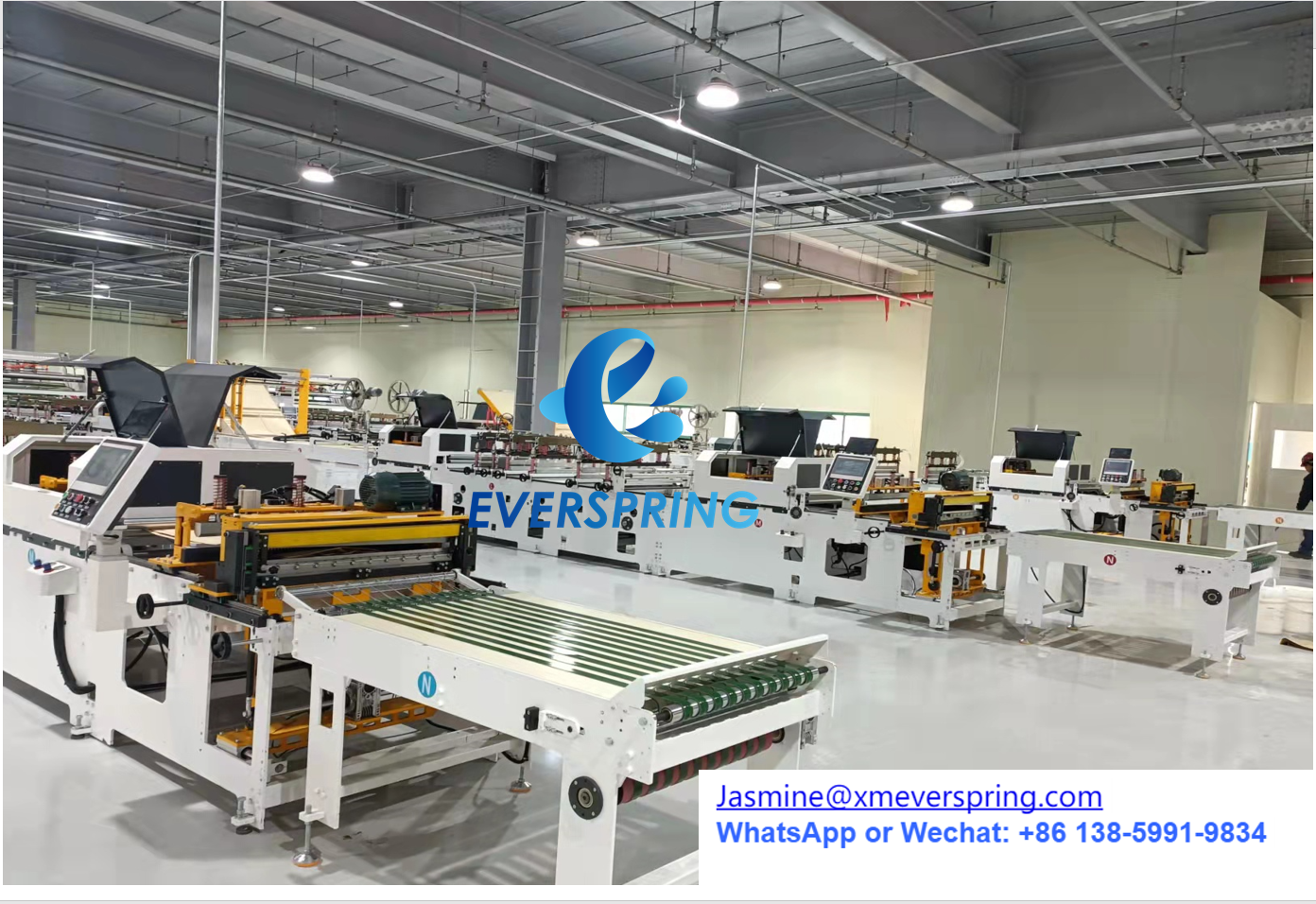

Honeycomb envelope machine

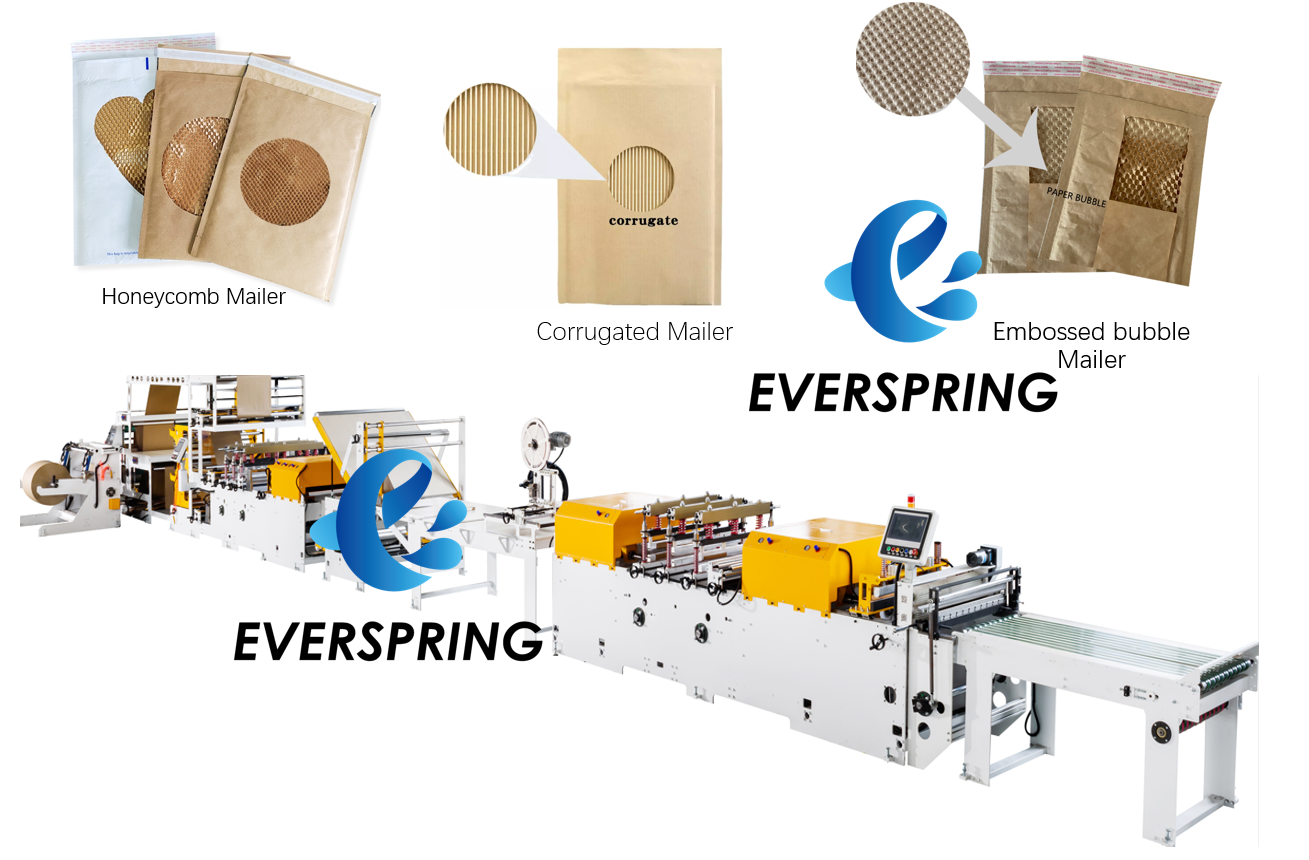

Honeycomb envelope machine details 1

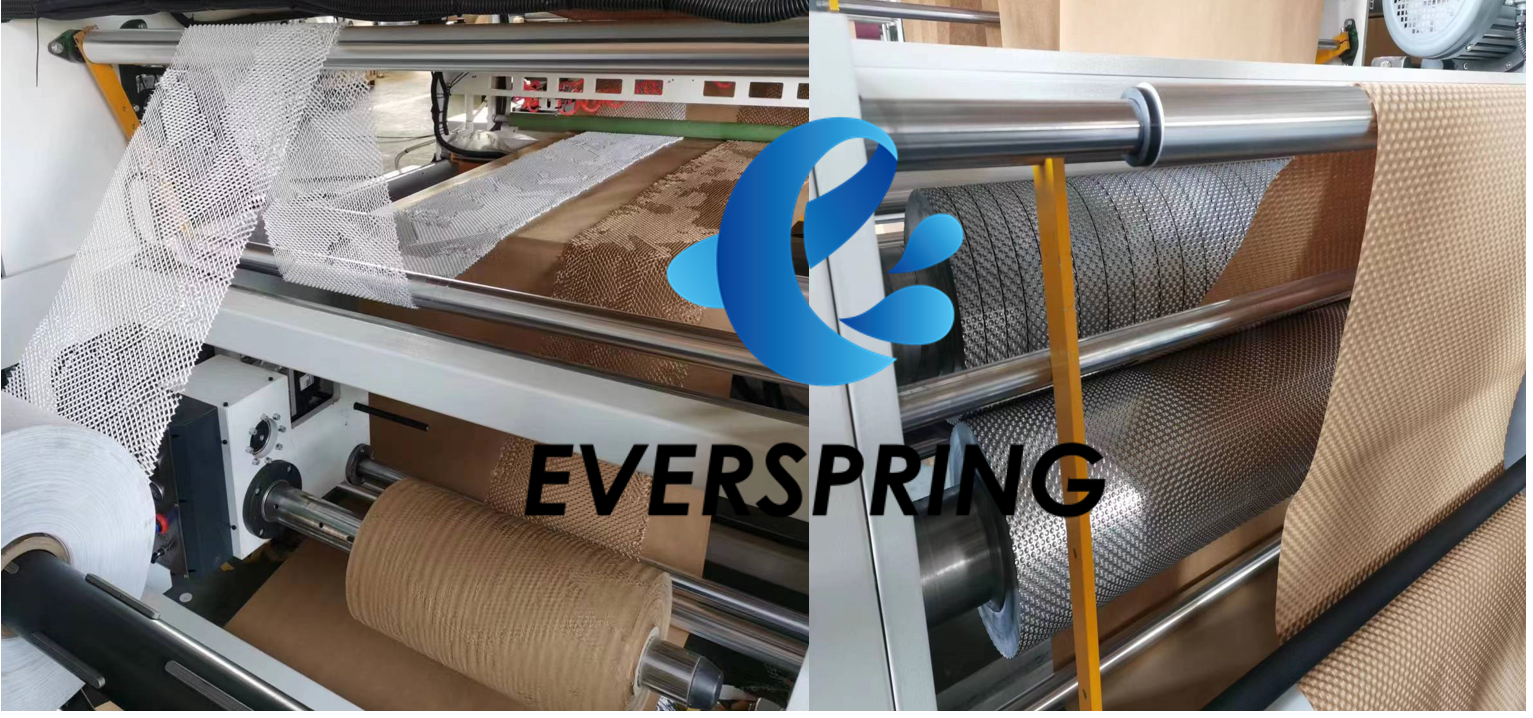

Honeycomb envelope machine details 2

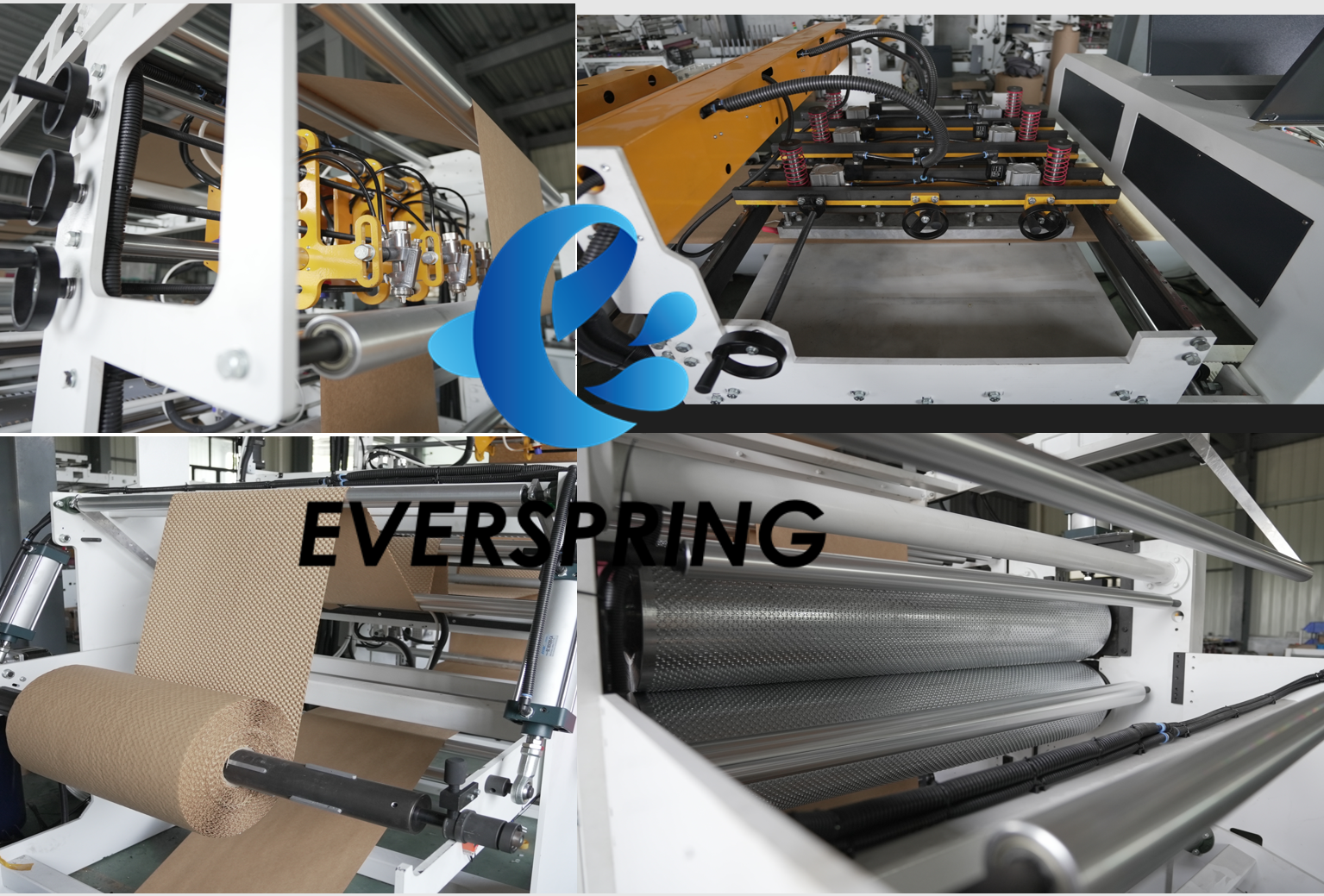

Honeycomb envelope  machine details 3

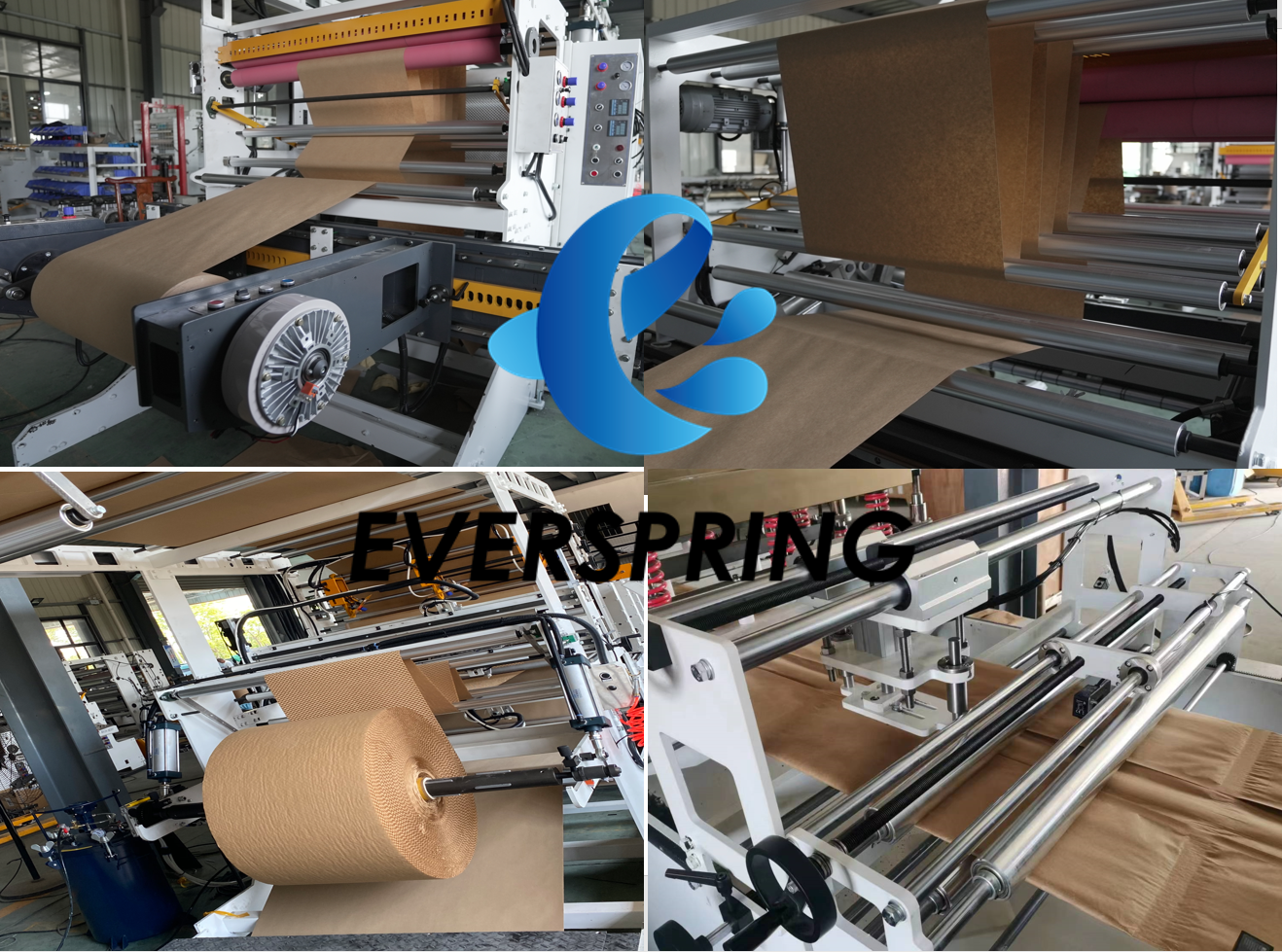

Honeycomb envelope machine details 4

Technical Parameters of Corrugated Paper Padded Envelope making machine

Model:

EVSHP-800

Material:

Kraft Paper, Honeycomb paper

Unwinding Width

≦1200 mm

Unwinding Diameter

≦1200 mm

Speed of Making Bag

30-50 units /min

Machine Speed

60 /min

Bag Width

≦800 mm

Bag Length

650 mm

Unwinding Part

Shaftless pneumatic Cone Jacking Device

Voltage of Power Supply

22V-380V,50HZ

Total Power

28 KW

Machine Weight

15.6 T

Appearance Color  of Machine

White Plus GrayYellow

Machine Dimension

31000mm*2200mm*2250mm

14 mm thick Steel Slates for The Whole Machine   (The machine is plastic sprayed.)

Air Supply

Auxiliary Device

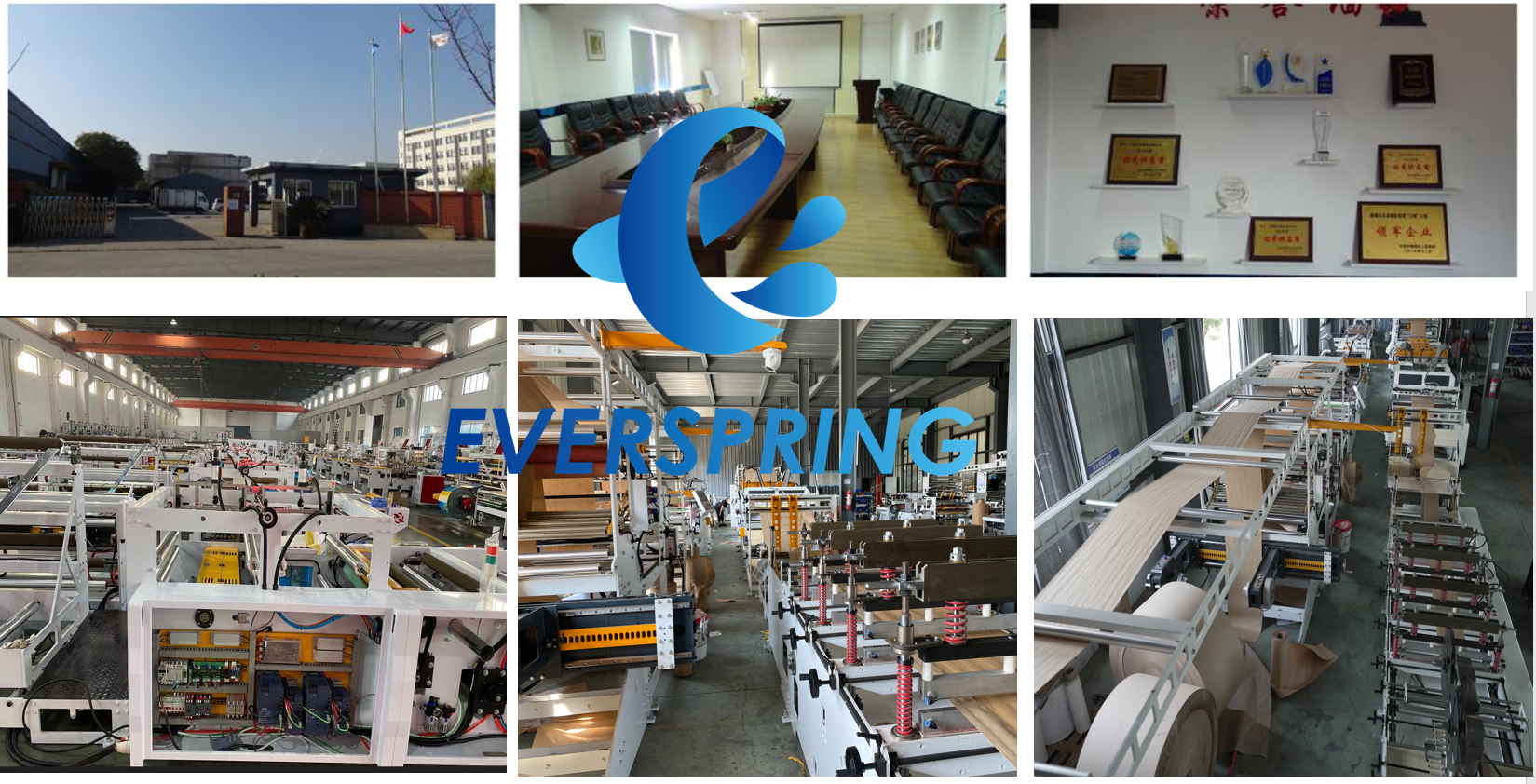

Our Factory

Our company is one of the largest protective packaging conversion production line manufacturer like the Hexcel wrapping padded mailer making machine, Hexcel wrapping padded mailer production line, Hexcel wrapping padded mailer conversion line, Paper pressed bubble cushion bag making machine, Corrugated cardboard paper envelope making machine, Honeycomb paper roll production line, industrial paper folding machine, Fanfold Z type paper folding machine, Embossed bubble paper cushion production line, Air cushion film processing line, Air Buffer Column Bag forming Machine.

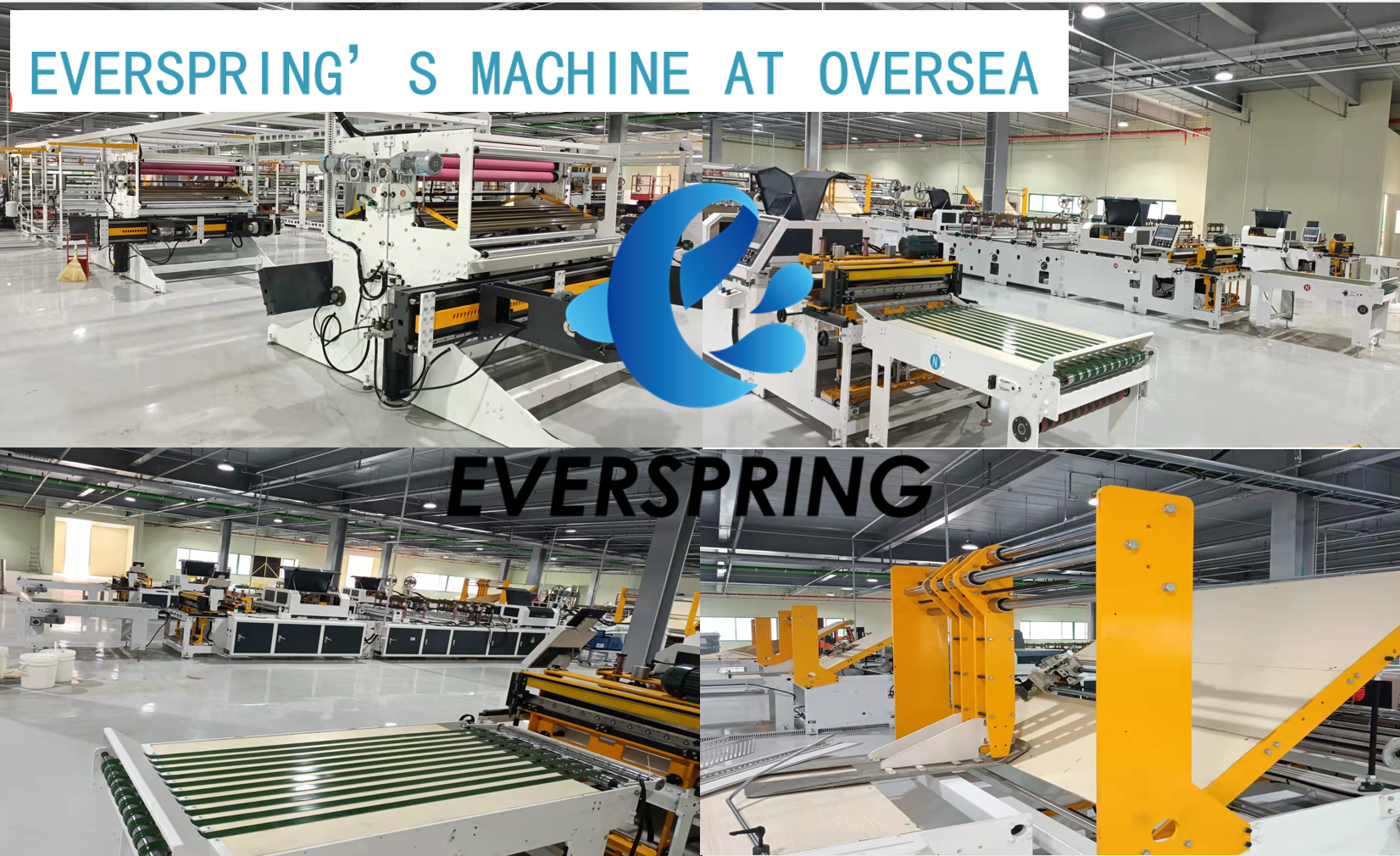

Honeycomb envelope machine at oversea
factory

FAQ

1.Are you a manufacturer and trading company?

We are an innovative enterprise integrating R&D, production and selling packaging manufacturer with 10 years of experience.

2.What is your warranty terms?

We provide a 1-year warranty

3.Which Payment terms you can offer?

We accept T/T, L/C, Alibaba trade assurance and other terms.

4.What is the delivery times and terms?

We accept FOB, and C&F/CIF terms.

Delivery time 15 to 60days depends on different machine.

5.How does your factory do regarding quality control?

We work with a dedicated quality inspection department for product inspection.

6.Can I visit your factory?

You are welcomed to visit our factory, and we will take care of you during the visiting.
